| NO. | ltem | Specification | ||

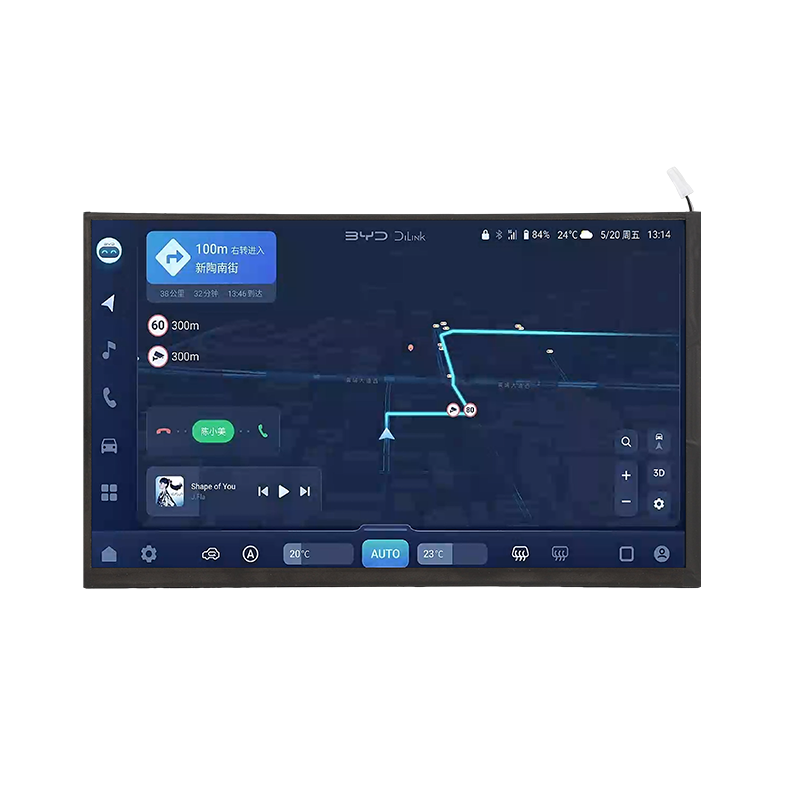

| 1 | Panel Size | 9.0 inch(Diagonal) | ||
| 2 | Driver Method | a-Si TFT active matrix | ||
| 3 | Display Color | 16.7M | ||
| 4 | Display Mode | Normally Black | ||
| 5 | Viewing Direction | All o’clock | ||
| 6 | Resolution | 720(RGB)x1280 | ||
| 7 | Active Area | 114.048(H)×196.608(V)mm | ||
| 8 | Dot Pitch | 0.1584(H)×0.1536(V)mm | ||
| 9 | Pixel Arrangement | RGB stripe | ||
| 10 | Module Size | 125.80(W)×210.00(H)×5.0(D)mm | ||
| 11 | Interface | MIPI 4 lane | ||
| 12 | Driving IC | FL7705N | ||
| 13 | Luminance | TBD (TYP) | ||
| 14 | Backlight | White LED | ||
